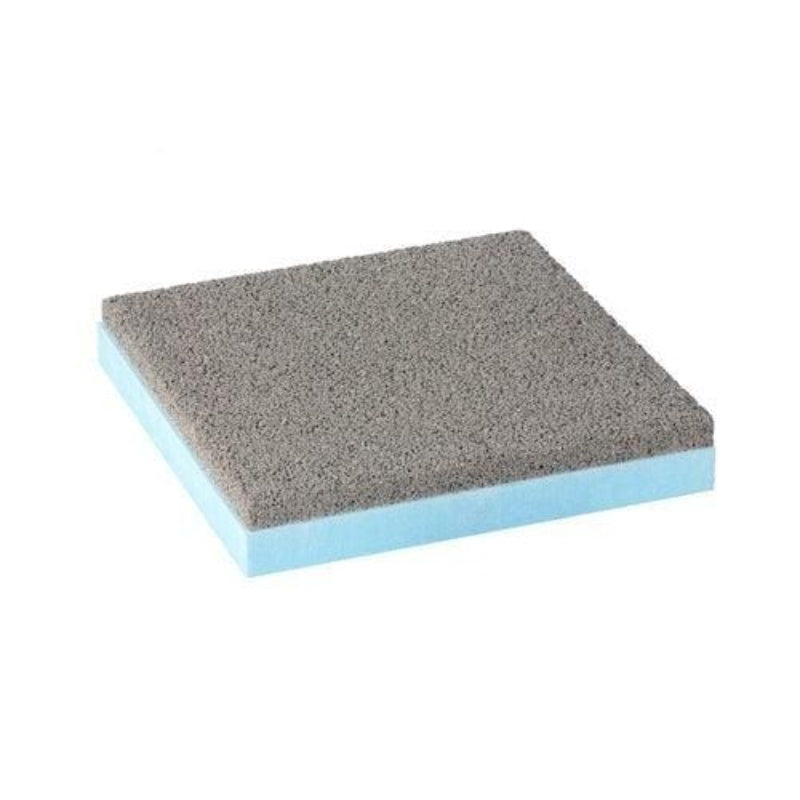

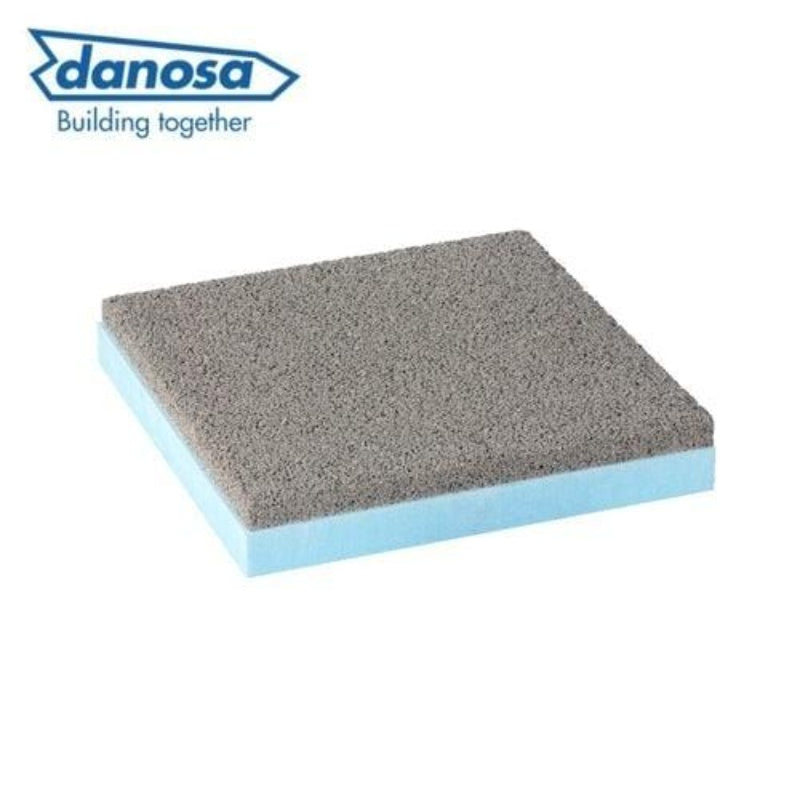

Danosa 75mm XPS Concrete Slab Grey – 500mm x 500mm

Danolosa Grey 75 is an insulating slab consisting of porous concrete, which acts as a mechanical protection over an extruded polystyrene base, resulting in a durable and practical insulated surface.

DANOSA DANOLOSA GREY 75 INSULATING SLAB APPLICATION

• Insulating and filtering slab all in one for accessible roofs.
• Rehabilitation and conversion of non-walking roofs.
• Technical paths in non walking gravel finished roofs.
• Support for equipment in non walking roofs and facilities in general.
• Technical decks over supports pads as per DANOSA´s System.

RECOMMENDATIONS

– The use of Danolosa over supports is restricted to square head supports (min. 200 mm) Danoplot type.
– For the cutting of the Danolosa, it is recommended to use a water-cooled low r.p.m. radial machine, type DU-200-L.
– It is not necessary to cover the joints.
– In the case of a synthetic waterproofing system , it is necessary to use a 300 gr./m² polyester geotextile between the membrane and the insulating slab.
– No hammers should be used for levelling or fitting the pieces.
– Before applying the product it is recommended to test the tightness of the waterproofing.
– This product is part of a waterproofing system, so we should take into account the systems and information contained in the manual of Danosa Solutions.
– Roof regulations must be respected.
– Due to possible variations in the tone of the raw materials, the tones between tiles of the same colour can also vary.
– The apparition of portlantita efflorescences on porous concrete, characterized by changing the colour of the tile, does not mean the decline of its performance. Variations in tone in the raw materials of porous concrete may also vary the tone between tiles of the same colour.

Specifications

Length: 50cm
Width: 50cm
Slab Size: 0.25m2
Thickness: 75mm
