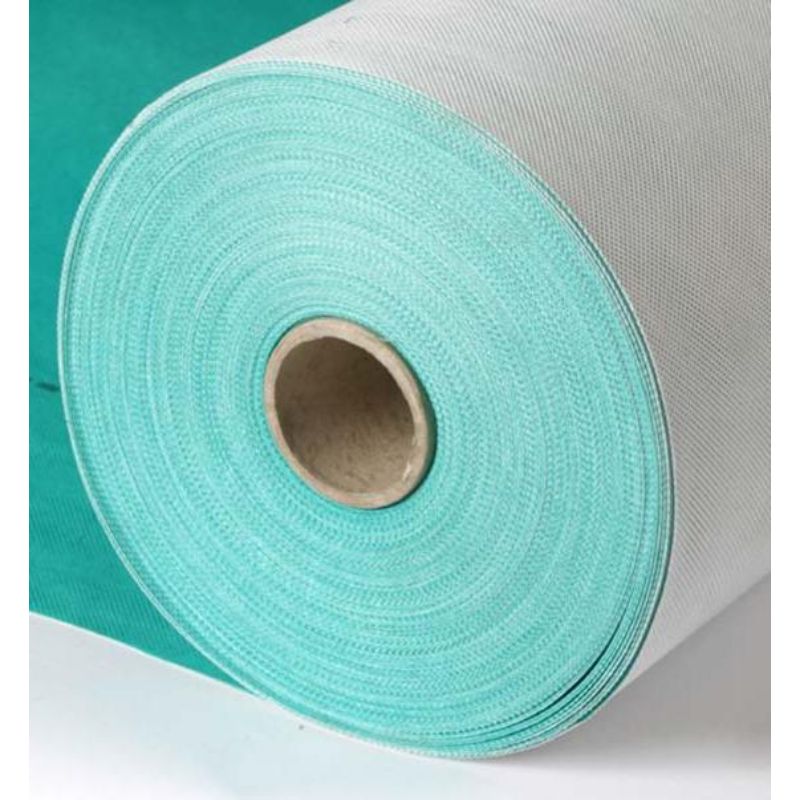

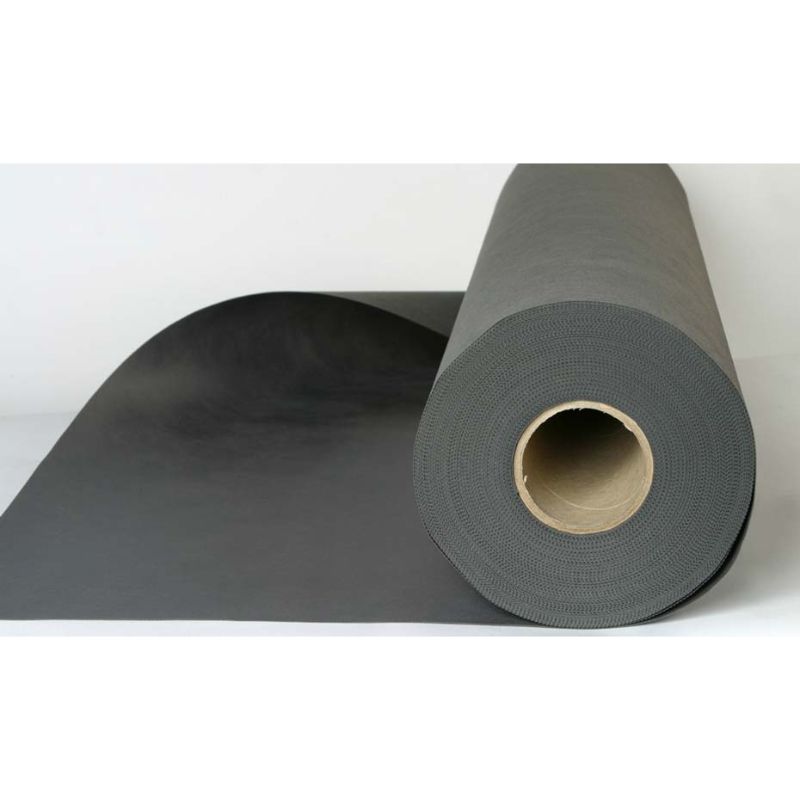

Frameshield 100 Membrane 2.7m x 100m – All Colours

Frameshield 100 is a spun-bonded polypropylene material developed primarily as a breather membrane for use in timber frame walls and light steel frame applications. Applied in the factory during manufacture or on-site, Frameshield 100 affords effective protection of timber frames during construction against wind-driven rain, snow, and dust. Once completed, the high water vapor permeability of Frameshield 100 allows the controlled escape of vapor from within the timber frame whilst restricting the ingress of rain and moisture.

Frameshield 100 conforms to BS 4016:1997 (Specification for Building Papers, Breather Type) and its vapor resistance factor of 0.03 MNs/g is less than the maximum permitted in NHBC requirements. Used following this NHBC Practice Note, Frameshield 100 provides a superior quality permanent wall breather membrane.

Exclusively developed and produced for The A. Proctor Group to carefully determined specifications by Britain’s only spun-bonded fabric manufacturer, Don and Low Nonwovens Ltd, Forfar, Scotland.

Wall Breather Membrane

Frameshield 100 is produced by the continuous extrusion of polypropylene fibers which are then spun and bonded together with a combination of heat and pressure.

Installed by the NHBC requirements, Frameshield 100 will comply with all current UK Building Regulations.

Characteristics:

• Thickness 0.5 mm,
• Weight 100 g/m2
• Roll Length 100m
• Roll Width 2.7, 1.5 (black), or 1.4m (green)
• Colour Green and Grey(not all available in all sizes)
