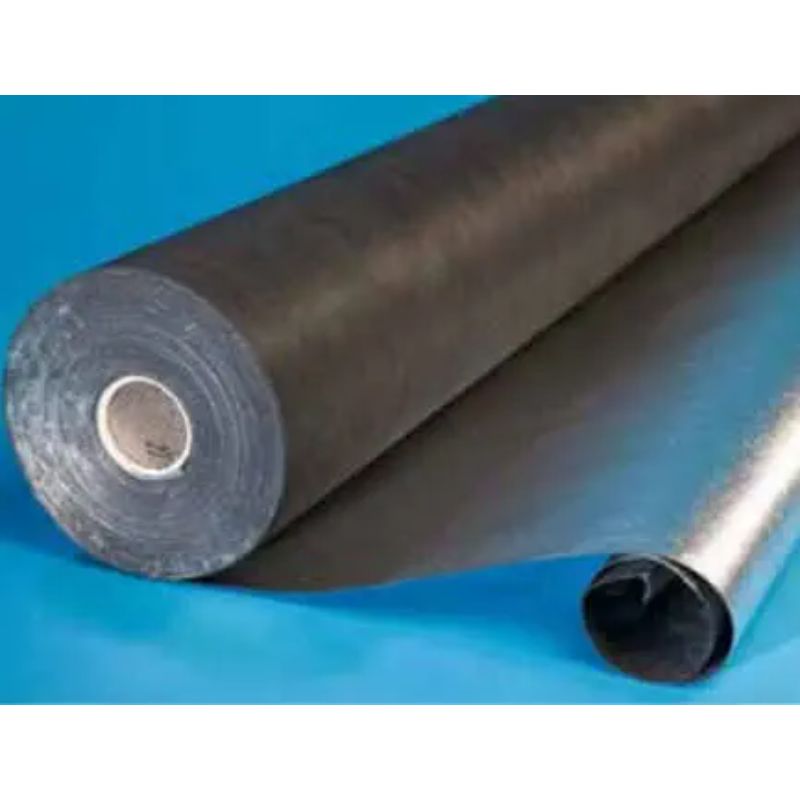

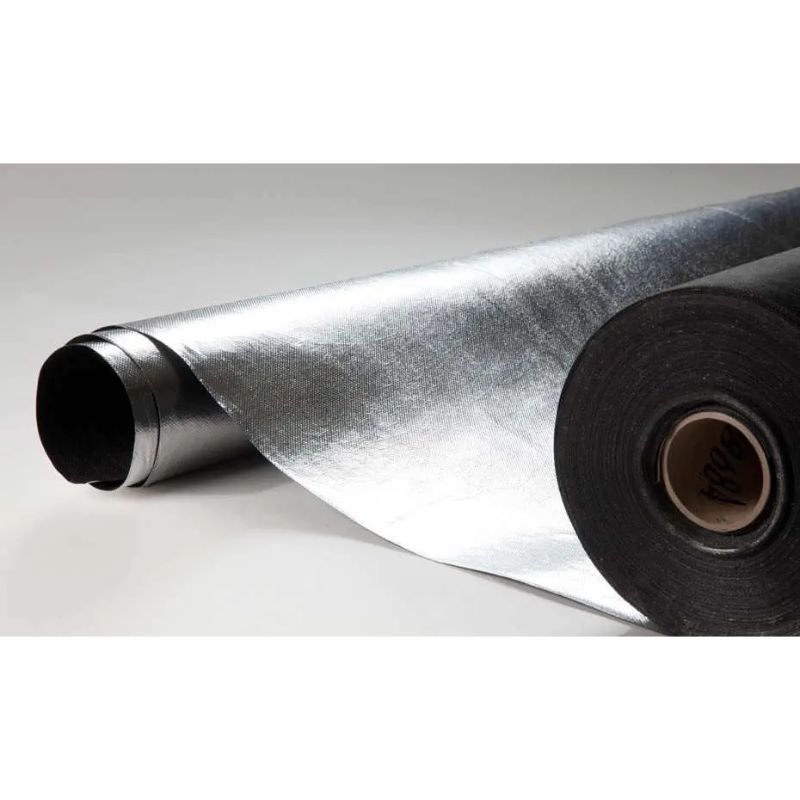

Reflectatherm Plus Reflective Vapour Control Layer – All Sizes

Reflectatherm Plus is a reflective, high-resistance vapor barrier for internal walls, ceilings, and floors, specifically designed to enhance thermal performance when placed on the warm side of the insulation. The membrane should be installed with the foil side facing the cavity. In ceilings, the product is placed between the underside of the rafters and the ceiling lining. In floors, the product is placed on top of the structural decking or insulation (where present) and below any screed or sensitive floor coverings. Adjacent sheets should be lapped by at least 50mm and sealed with suitable tape. Minimise penetrations caused by services and seal all joints.

Key Benefits:

• R-value of 0.78 m2 K/W when used with a minimum 19mm service cavity.
• High vapor resistance.
• Improved airtightness.
• Creates a service void.
• Creates an unbroken vapor control layer.
• Sd Value of 150m.
• Vapor Resistance 750 MNs/g.
• Help meets the requirements of Part L in England and Wales, Section 6 in Scotland
